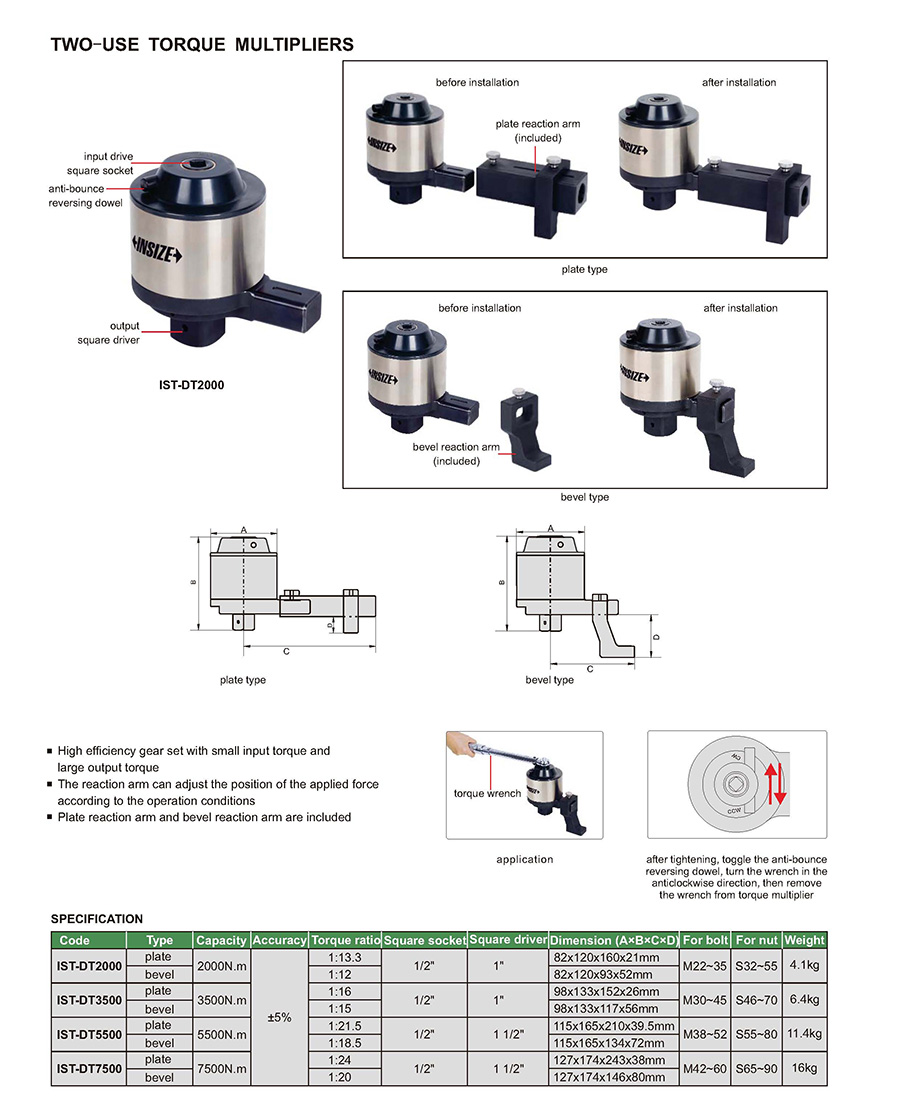

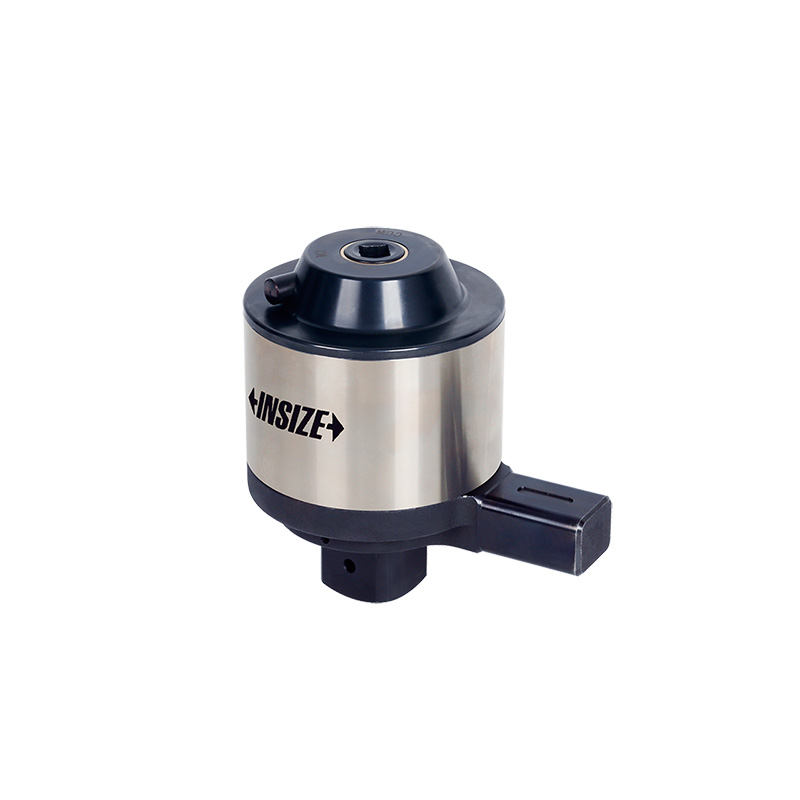

Two-Use Torque Multipliers
Code: IST-DT Series
High efficiency gear set with small input torque and large output torque
The reaction arm can adjust the position of the applied force according to the operation conditions
Plate reaction arm and bevel reaction arm are included
| Code | Type | Capacity | Presentation Format of Values | Head Type |
|---|---|---|---|---|
| IST-DT2000 | mechanical multiplier | 2000N.m | no torque display | fixed ratchet head |
| IST-DT3500 | mechanical multiplier | 3500N.m | no torque display | fixed ratchet head |
| IST-DT5500 | mechanical multiplier | 5500N.m | no torque display | fixed ratchet head |
| IST-DT7500 | mechanical multiplier | 7500N.m | no torque display | fixed ratchet head |
