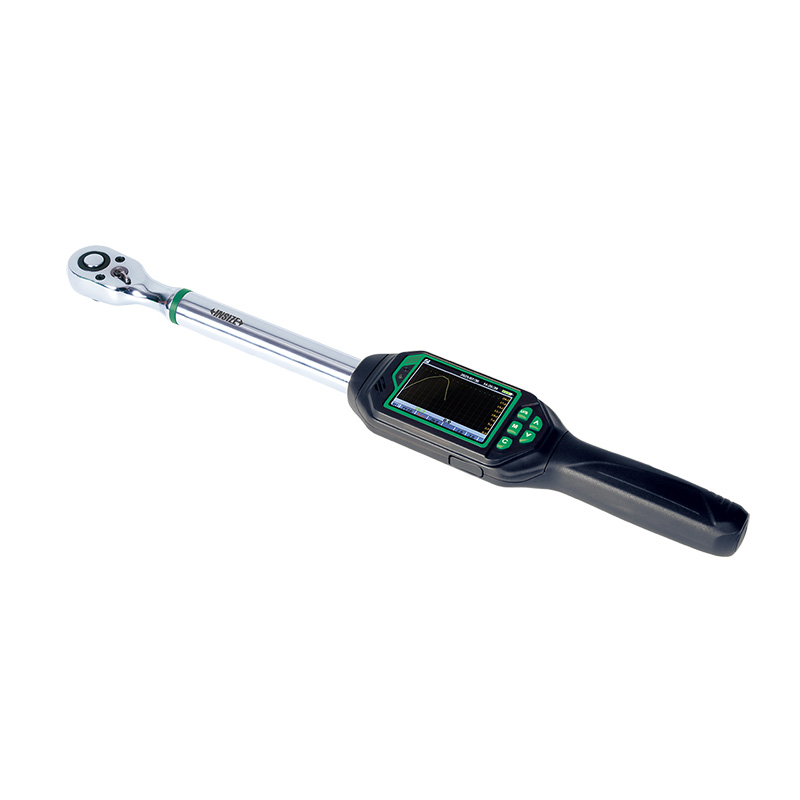

Color Screen Multifunctional Digital Torque Wrenches
Code: IST-40W Series
Clockwise and counter-clockwise operation
Maximum value and real-time value displayed simultaneously
Three display modes for torque values: pointer, numerical, and curve
Upper and lower tolerance limits can be set to determine pass or fail by LED lights
| Code | Type | Range | Data transmission | Presentation Format of Values | Head Type |
|---|---|---|---|---|---|
| IST-40W30A | digital | 6~30N.m | wired software transmission | color screen and curve | fixed ratchet head |
| IST-40W60A | digital | 12~60N.m | wired software transmission | color screen and curve | fixed ratchet head |
| IST-40W135A | digital | 27~135N.m | wired software transmission | color screen and curve | fixed ratchet head |
| IST-40W200A | digital | 40~200N.m | wired software transmission | color screen and curve | fixed ratchet head |
| IST-40W340A | digital | 68~340N.m | wired software transmission | color screen and curve | fixed ratchet head |
View the complete
product specifications
