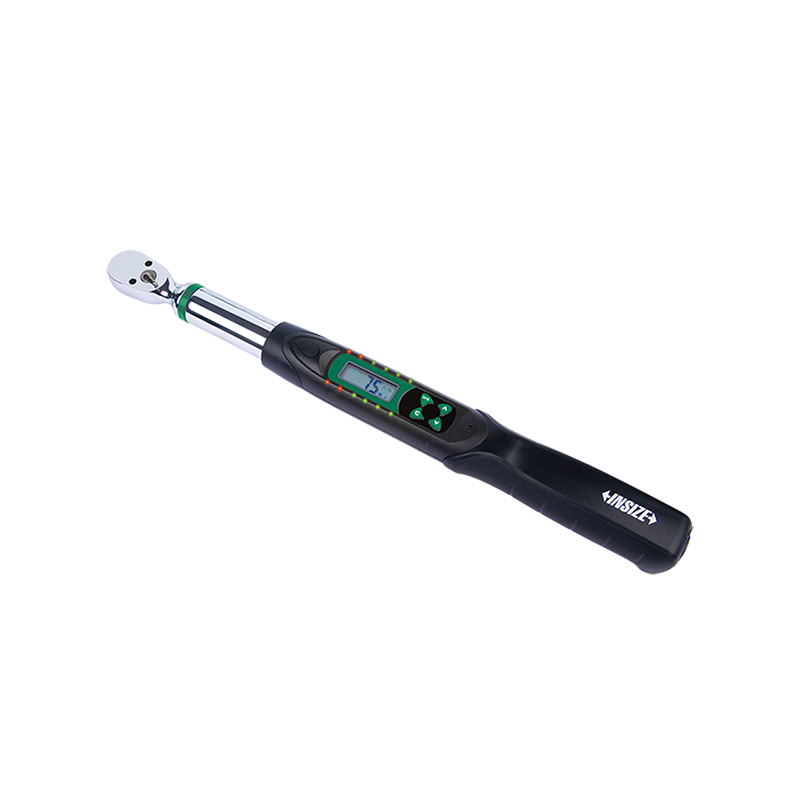

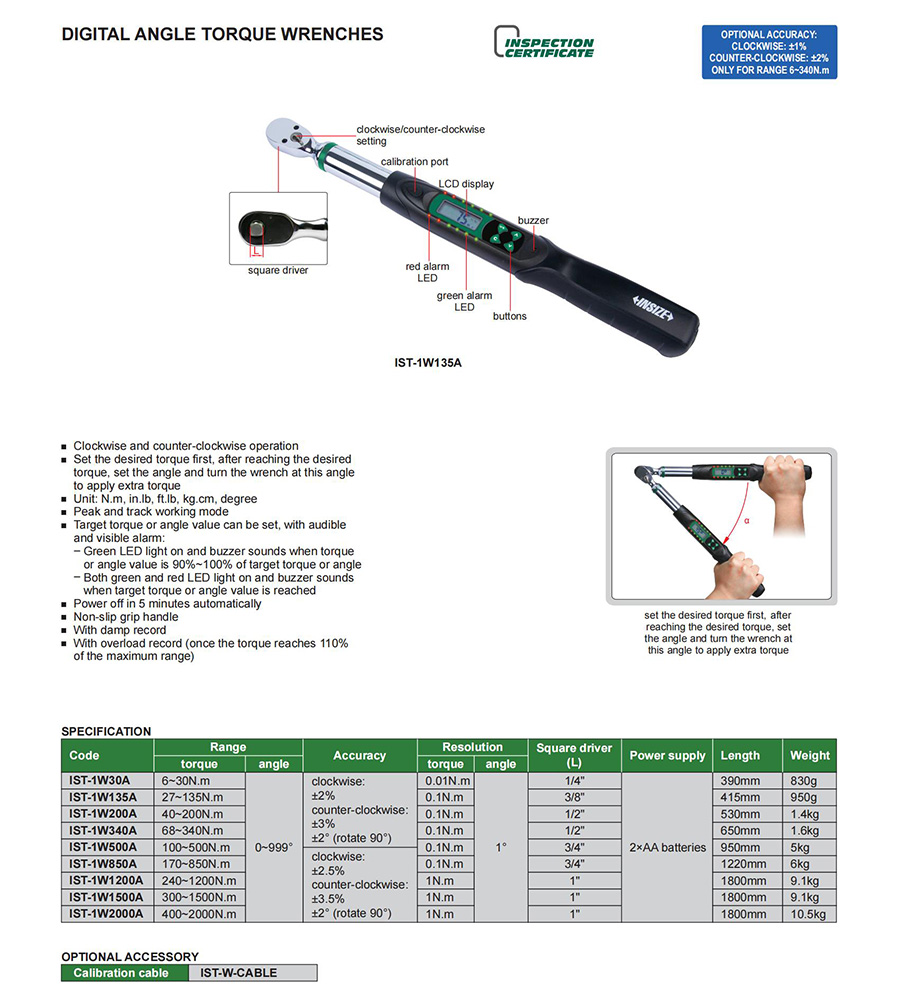

Digital Angle Torque Wrenches
Code: IST-1W Series
Ratchet head
Clockwise and counter-clockwise operation
Set the desired torque first, after reaching the desired torque, set the angle and turn the wrench at this angle to apply extra torque
Unit: N.m, in.lb, ft.lb, kg.cm, degree
Peak and track working mode
| Code | Type | Range | Data transmission | Presentation Format of Values | Head Type |
|---|---|---|---|---|---|
| IST-1W30A | digital | 6~30N.m | no transmission | digital display | fixed ratchet head |
| IST-1W135A | digital | 27~135N.m | no transmission | digital display | fixed ratchet head |
| IST-1W200A | digital | 40~200N.m | no transmission | digital display | fixed ratchet head |
| IST-1W340A | digital | 68~340N.m | no transmission | digital display | fixed ratchet head |
| IST-1W500A | digital | 100~500N.m | no transmission | digital display | fixed ratchet head |
| IST-1W850A | digital | 170~850N.m | no transmission | digital display | fixed ratchet head |
| IST-1W1200A | digital | 240~1200N.m | no transmission | digital display | fixed ratchet head |
| IST-1W1500A | digital | 300~1500N.m | no transmission | digital display | fixed ratchet head |
| IST-1W2000A | digital | 400~2000N.m | no transmission | digital display | fixed ratchet head |
