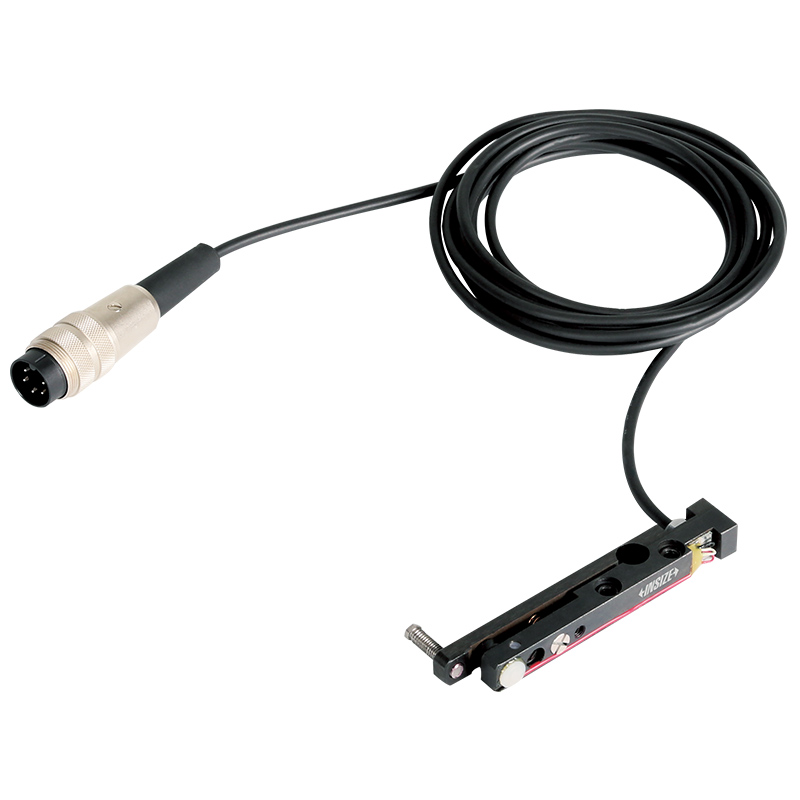

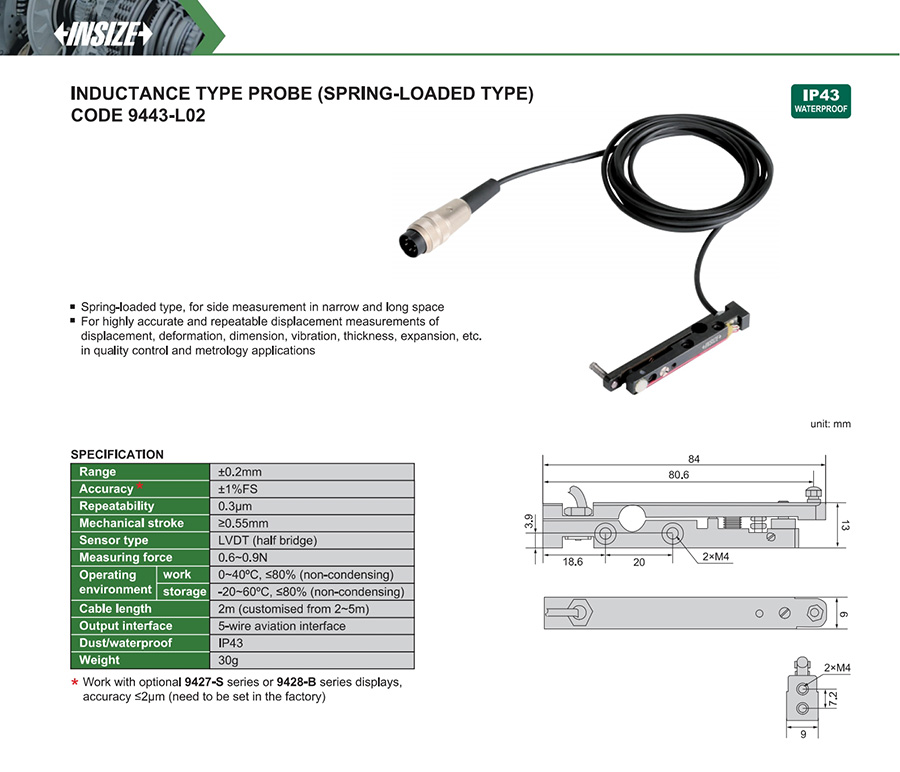

Inductance Type Probe (Spring-Loaded Type)
Code: 9443-L02
Spring-loaded type, for side measurement in narrow and long space
For highly accurate and repeatable displacement measurements of displacement, deformation, dimension, vibration, thickness, expansion, etc. in quality control and metrology applications
| Code | Sensor type | Range | Accuracy | Repeatability |
|---|---|---|---|---|
| 9443-L02 | lvdt (half bridge) | ±0.2mm | ±1%FS | 0.3µm |
