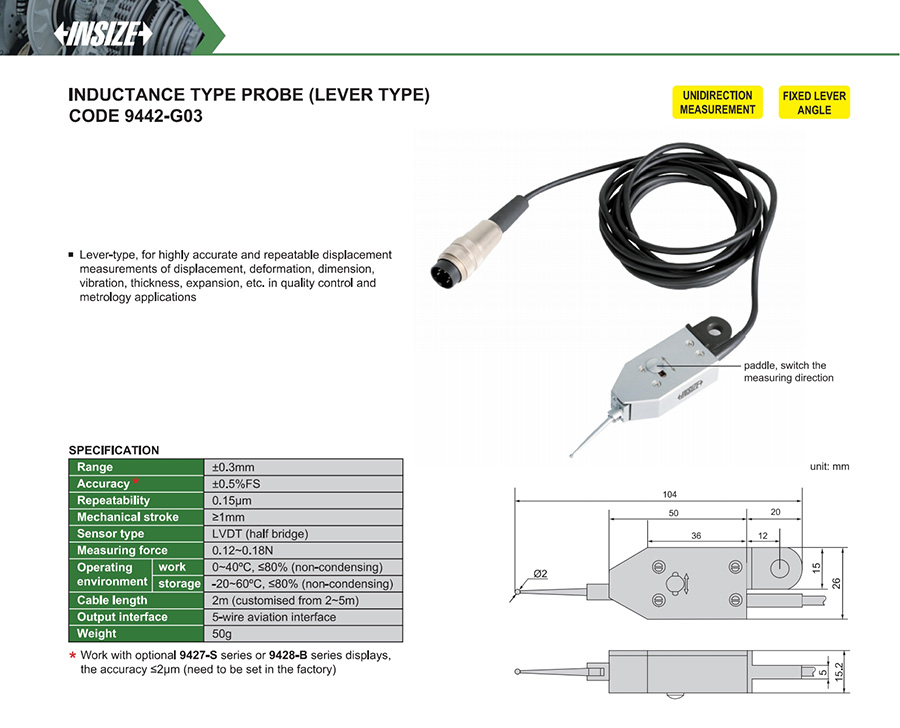

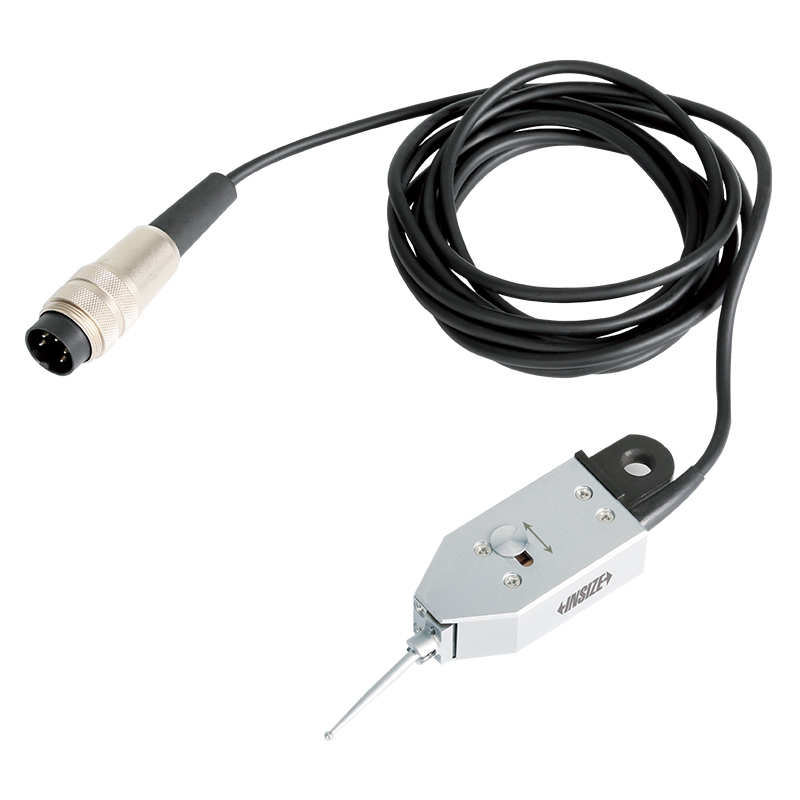

Inductance Type Probe (Lever Type)
Code: 9442-G03
Lever-type, for highly accurate and repeatable displacement measurements of displacement, deformation, dimension, vibration, thickness, expansion, etc. in quality control and metrology applications
| Code | Sensor type | Range | Accuracy | Repeatability |
|---|---|---|---|---|
| 9442-G03 | lvdt (half bridge) | ±0.3mm | ±0.5%FS | 0.15µm |
View the complete
product specifications
